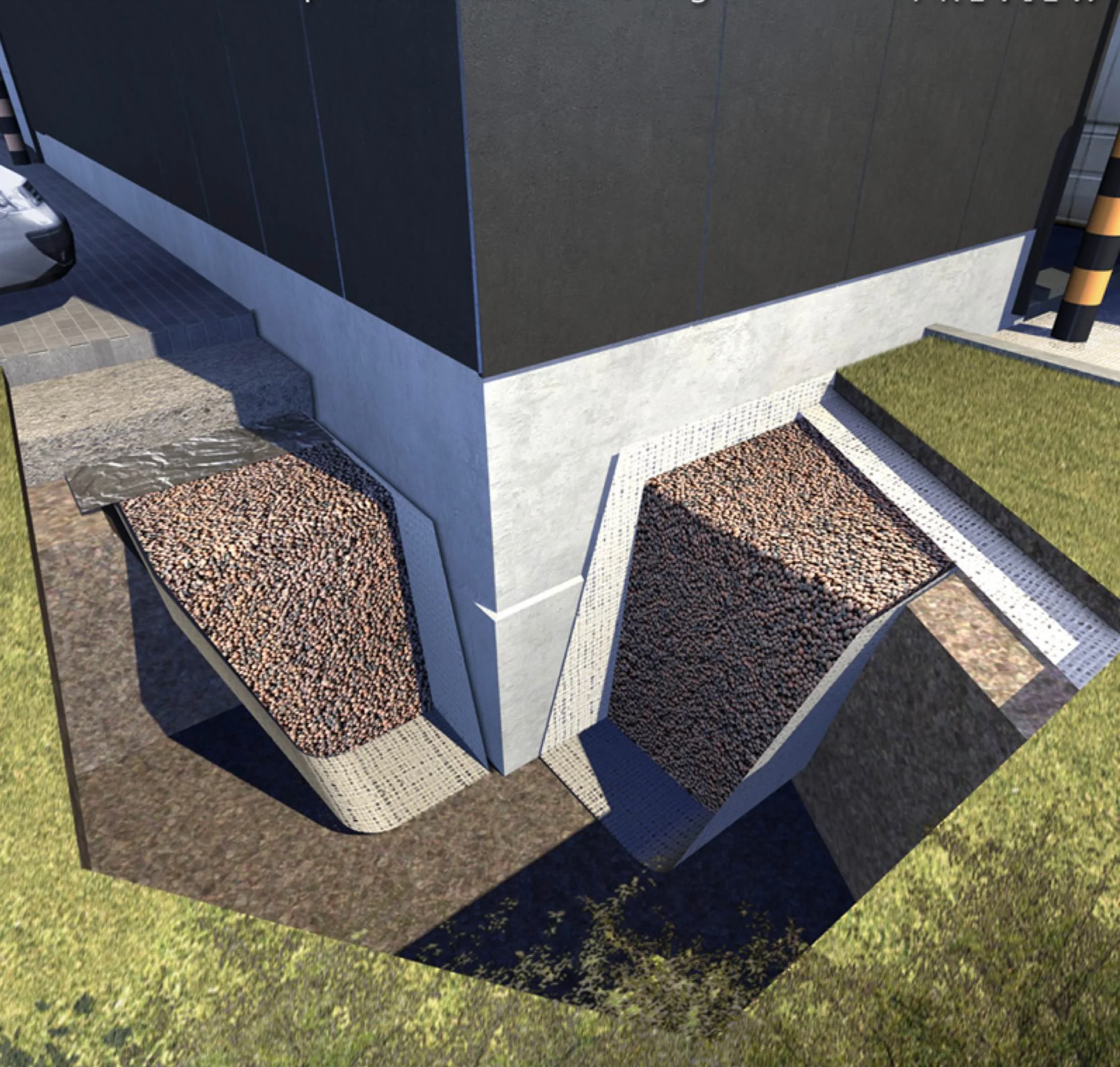

The ideal lightweight raw material for a water buffer or infiltration basin is a package of expanded clay aggregates, packed in an open or closed geotextile. The open spaces in and between the aggregate ensure a perfect drainage. Furthermore, Argex® low density aggregates can be blown by a silo truck over a distance of up to 100m. So, perfect for a quick and easy placement on sites with limited accessibility and/or drivability.

A water buffer or water infiltration basin with Argex® grains retains the water and slows down the drain at the same time. A multitude of opportunities opens up when choosing Argex®. The benefits of the Argex® aqua solutions are mainly due to its hollow cavities: 45% of hollow cavity between pellets and 43% inside the grains. And it doesn’t end there. Our product is also an economical one. Rapid processing with silo trucks, full use of construction pit, flexible design, unlimited lifespan and reusability of the product make Argex® the qualitative and most cost-effective solution for you as a contractor or builder.

Besides expensive water filters, which also consume a lot of energy, the water of your swimming pond can be purified using Argex® lightweight aggregates. Our clay grain is a 100% natural product and it’s inert, rot-free and very sustainable. Ideal for biological filtration of a swimming pond or the individual processing of your wastewater.

Purifying wastewater under a parking space with the Phyto parking lot. The Phyto parking lot is a natural wastewater treatment, based on the technique of aerated reed lands. One parking space (2,50 x 5,00 m) can treat the waste water of 16 people. Wherever parking space is provided, waste water can be purified under each parking spot, which makes connection to the sewerage unnecessary.

The Phyto air consists of a basin filled with expanded clay granules (Argex®) that is irrigated with wastewater. At the bottom of the basin, aeration pipes bring air into the wastewater and cause mixture in the system. At the end of the basin, the purified waste water is collected through a drain pipe that terminates in an overflow pit. The hole is sealed from the substrate by means of a strong foil.The Phyto air is ideal for medium-sized projects such as residential areas or groups of homes, business parks, hotels, nursing homes, hospitals, schools and companies. Thanks to the high purification efficiency, the Phyto air system can be scaled up to more than 1000IE.

Advantages of the Phyto air

Purifies black and gray household wastewater and various types of industrial wastewater

Low annual costs due to no sludge removal, low energy consumption and only 1 maintenance per year

Very fast start-up: the discharge requirements are already met after two weeks

Suitable for varying loads and peak discharges

Low weight and high stability

Excellent humidity control and soil aeration

Minimal soil compaction

Substrates’ structure improvement

Optimal drainage capacity

Frost resistant

Flexible design

Unlimited lifespan

Environmentally friendly

Product Code - Argex® AG 4-8mm 370kg/m3

Loose Bulk Density - 4/8mm 370kg/m3 Conforms to BS EN 13055

Product Code - Argex® AR 8-16mm 340kg/m3

Loose Bulk Density - 8/16mm 340kg/m3 Conforms to BS EN 13055
